Pulper Rope / Ragger Wire Shredder from INDIA

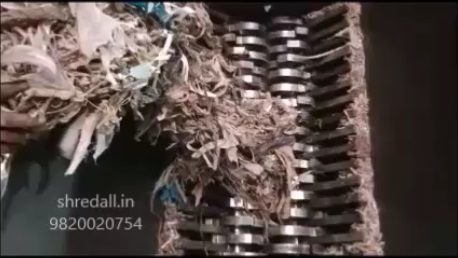

The Shredall P252 is an ideal paper mill waste shredder machine with powerful cutters to take all raggers from the pulper as it is with wire rope from waste paper bales.
All pulper waste can be put in this machine to make into small pieces and mixed for boiler fuel.
Ideally this machine needs an output conveyor coupled with a magnetic separator to remove the wire pieces. We can offer the full line for the higher capacity shredders or just the shredder for small paper mills.

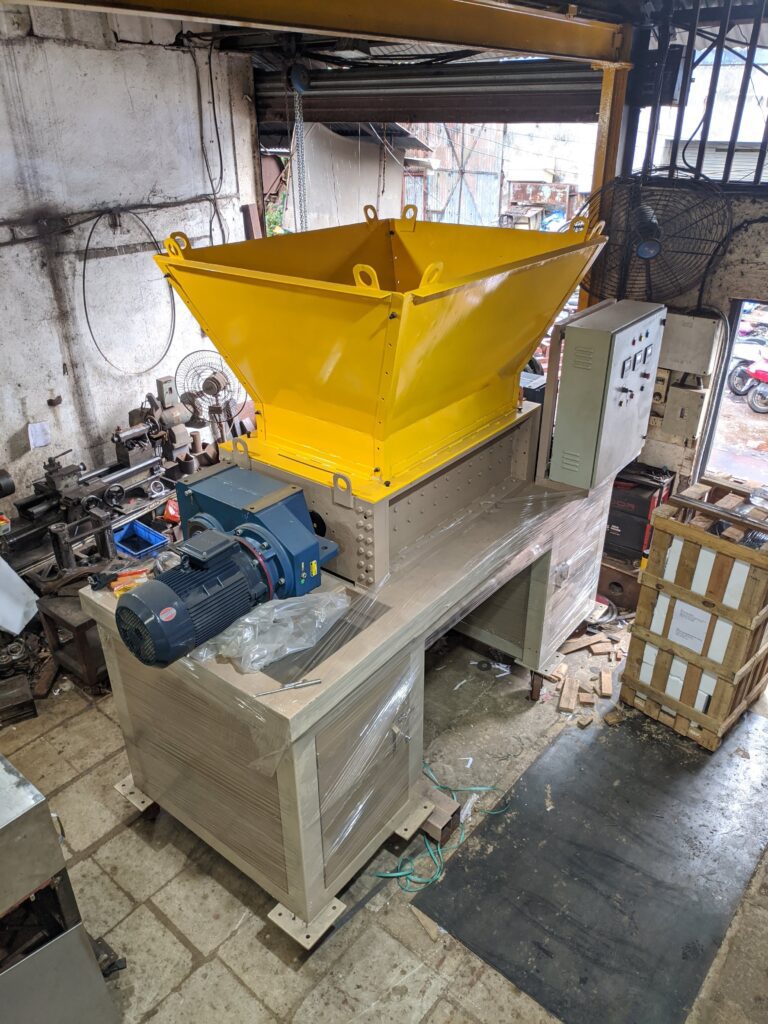

Specifications of our most common PAPER MILL WASTE SHREDDER MACHINE
Model No. P252HD
Trademark : SHREDALL™
Origin : India
Certification : ISO 9001:2015, CE
Condition : Brand New
Suitable for : Pulper Ragger
Processing Type : All pulper waste with wires
Motor Power : 18.5kw x 2 = 50 hp
No. of motor and gearboxes : 2
Blade Materials : 9crsi, Diameter 530mm
Lubrication System (Optional) : Automatic Oil Lubricator
Core Components : Controls, Motor, Cutters, Shafts, Gearbox
Shredder Type : Double Shaft
Product Name : Paper Mill Waste Shredder
Voltage : 430/380V/Other Voltages also available
Shaft : Solid Shaft, Made of 40cr, Hardened and Tempered
Shredded Output : Mixed pieces
Gearbox 2 units : Planetary Type, Gear Transmission
Application Industry : Packing Industry/Paper Mill
Transport Package : Wooden Case or Container
Machine Size : 5 x 1.5 x 4.5 mtrs LBH
Package Gross Weight : 9200 kgs
Also Available double stage shredding system for smaller pieces and more efficient sorting of metal pieces with a magnetic separator
It is possible to burn waste from paper making in boilers as fuel. The paper making process generates various types of waste, including ragger waste from pulper, black liquor , wood waste, and sludge, which can be used as alternative fuel sources for boilers. This reduces use of coal and puts the waste to good use which otherwise is a problem to dispaose with strict gobvenrment regulations.
